Trunnion Mounted Ball Valves

Design Features

·Design as per API 608, API 6D, ISO 14313 etc.

·Full Bore or Reduce Bore

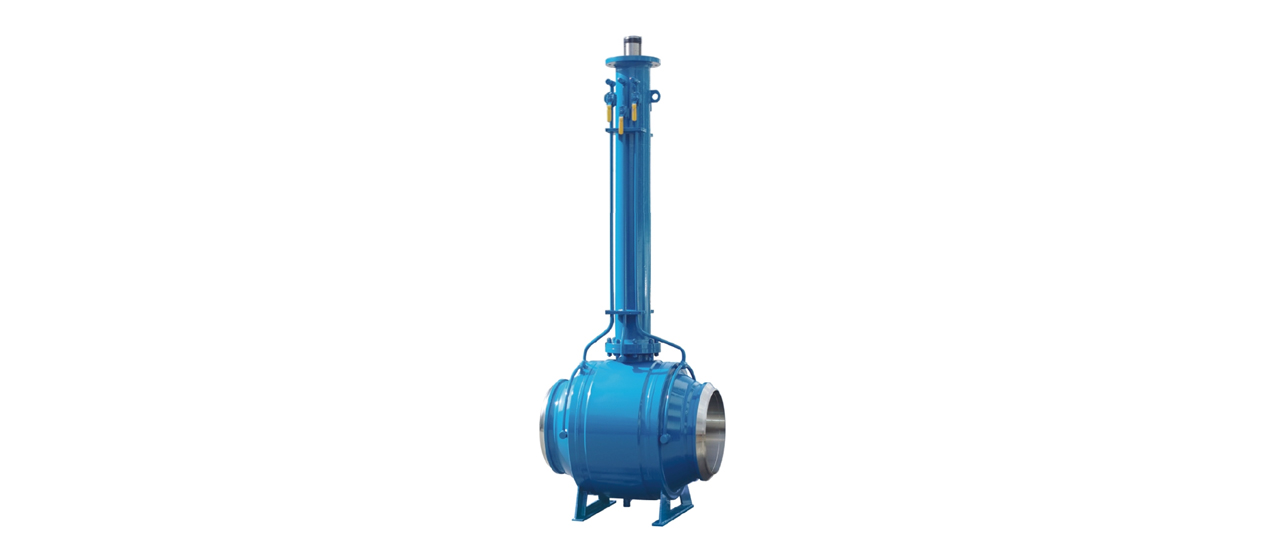

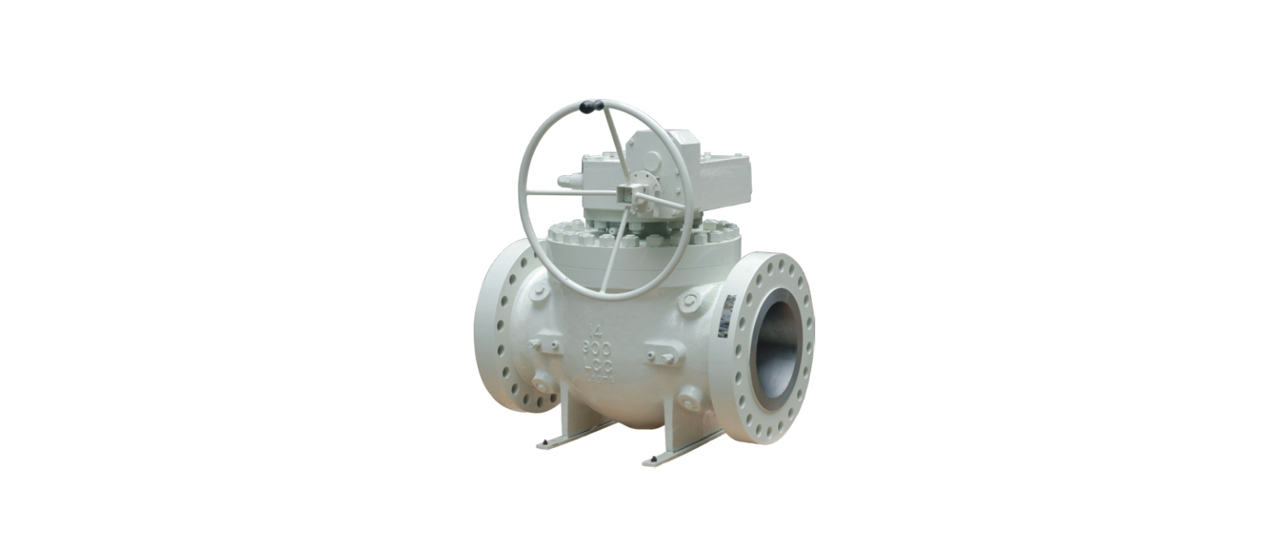

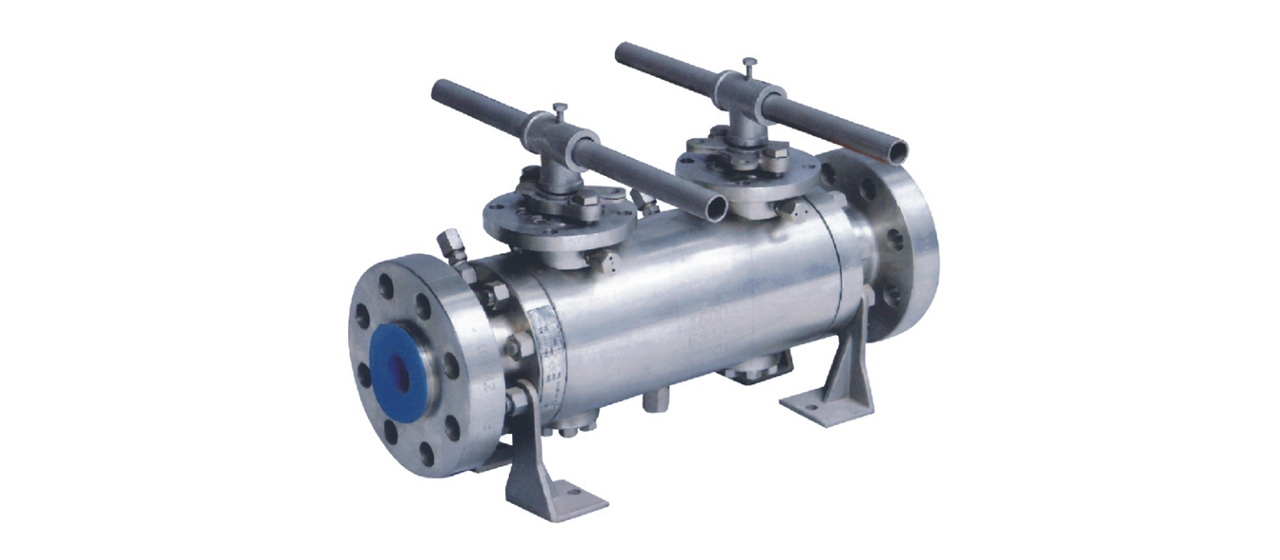

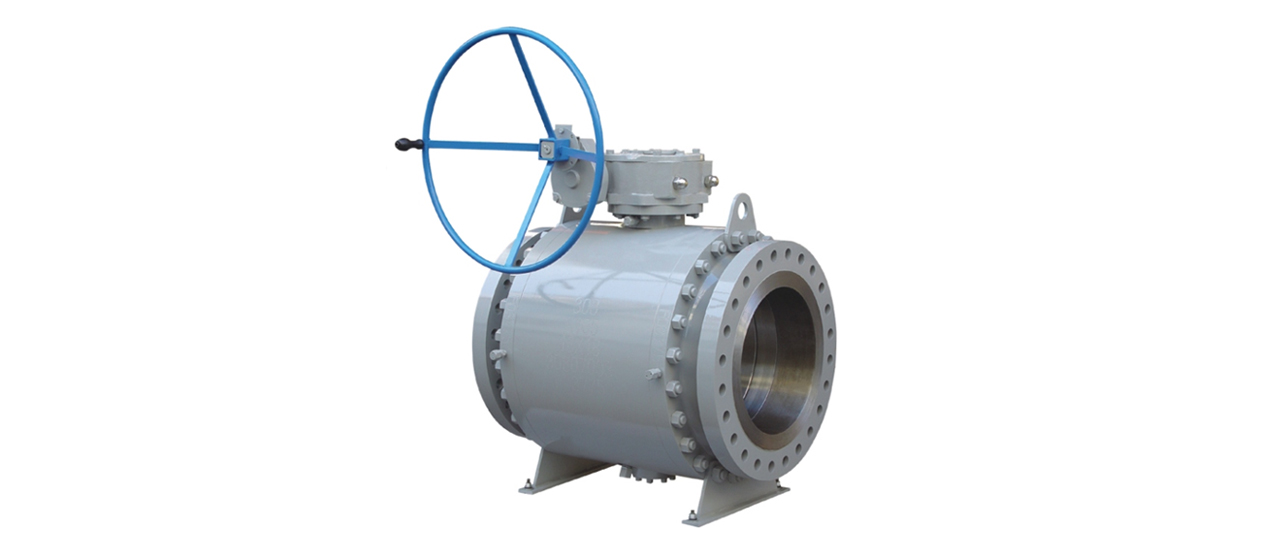

·Side Entry (Two-piece, Three-Piece), Top Entry, Full Welded Body, Single Body Double Ball (DBB Ball Valve)

·DBB, DIB-1, or DIB-2 Function

·Fire Safe, Anti-Blow Out Stem, Anti-Static Device

·Soft or Metal Seal

·Cavity Pressure Self Relief

·ISO 5211 Top Flange

Optional Features

·NACE MR 0175/NACE MR 0103, HIC/SSCC

·Extend Stem/Bonnet

·Pup Piece(With Nipple)

·Fugitive Emission, Vacuum Isolation

·Free of Oil and Water

·With Locking Device, Position Indicator, Limit Switch (Except Check Valve)

·With Bypass, Drain or Vent

·With Counter Flange, Gasket, Fasterners

·The valve body/bonnet wet area , seat pocket and stem sealing area cladding with alloy or stainless Stee

Type : Trunnion Mounted Ball Valve
Size : 2”-48” (DN15-DN1200)
Pressure Rating : Class 150-2500 (PN16-PN420)
Body Material : Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel etc.
Trim Material : Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel etc.

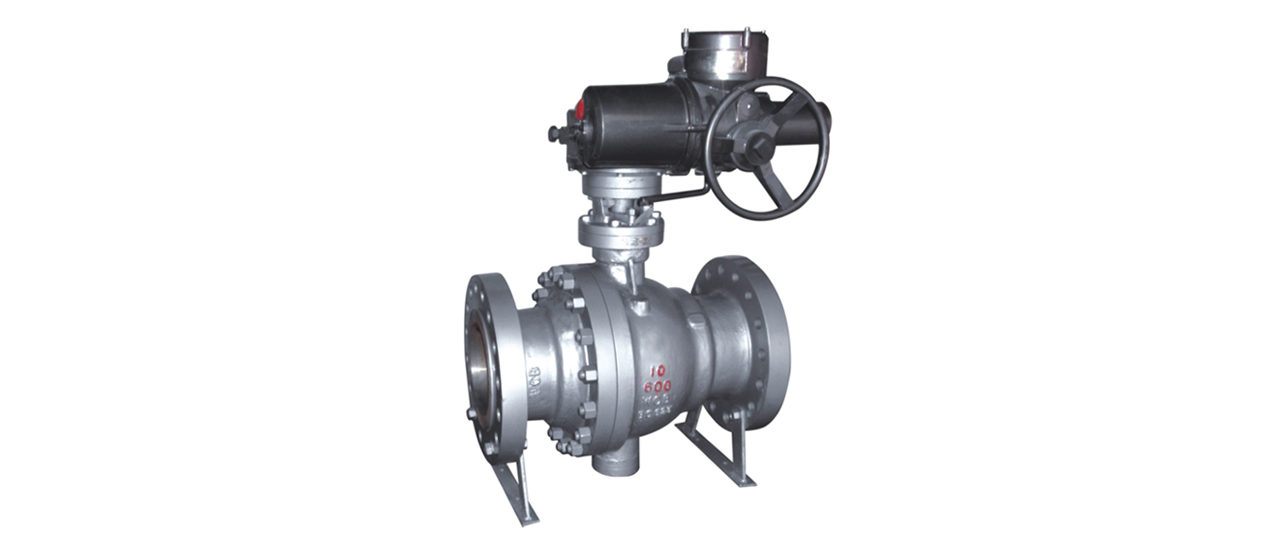

Operation : Wrench, Gear Box, Electric and Pneumatic Actuator etc.
End Connection : Flange, SW, Threaded, BW etc.
