Forged Gate, Globe and Check Valves
·Design as per API 602, ASMEB16.34 etc
·Full Bore or Reduce Bore

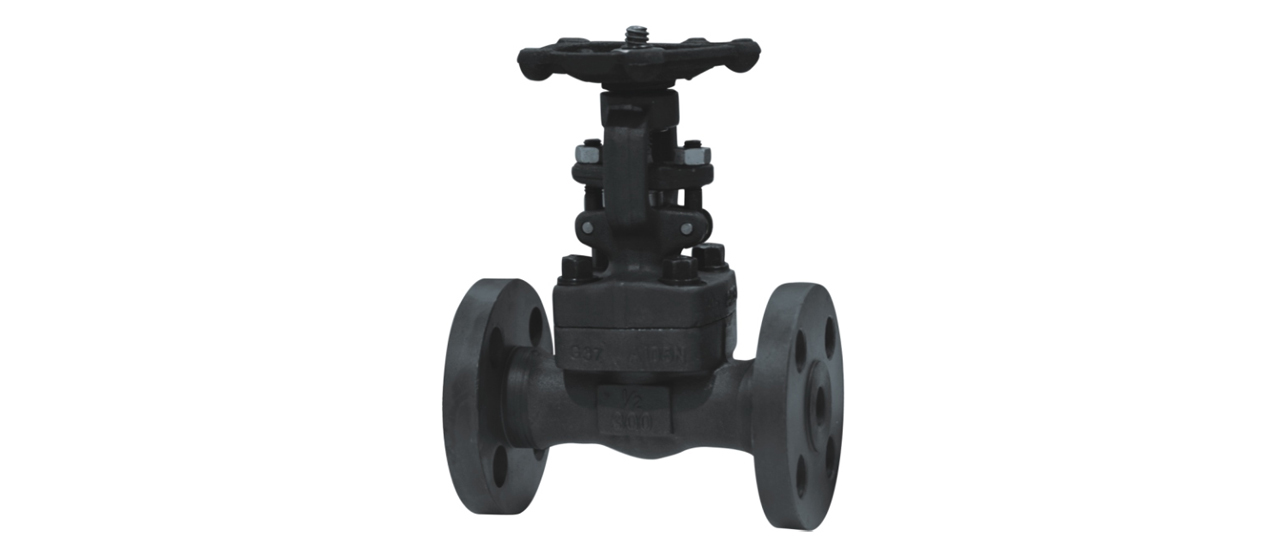

·Solid Wedge Disc (Gate Valve)

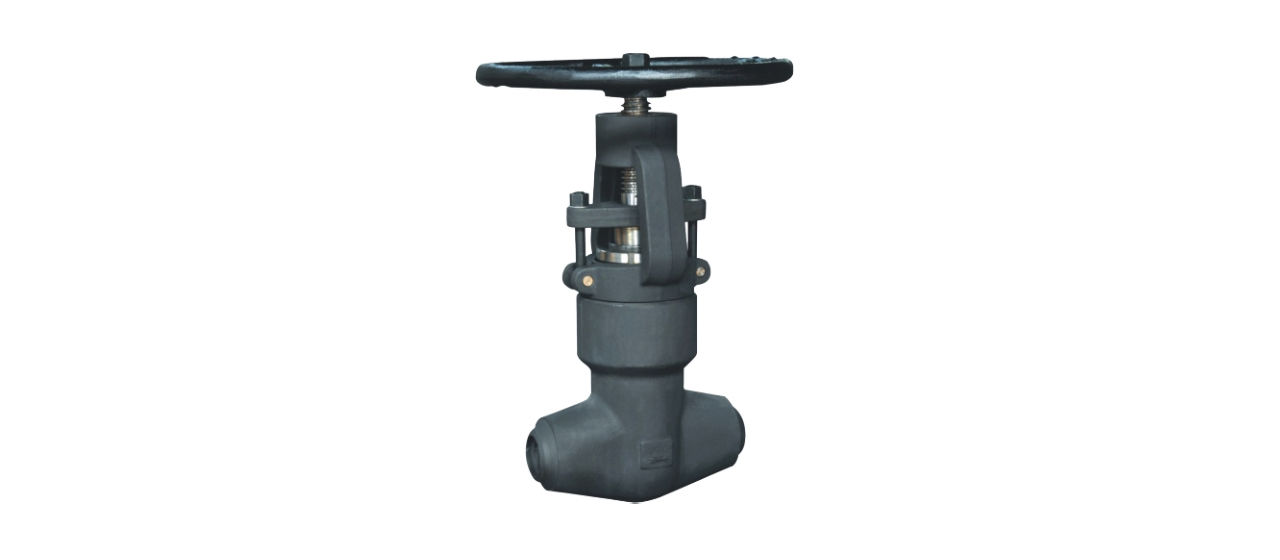

·Cone or Needle Disc (Globe Valve)

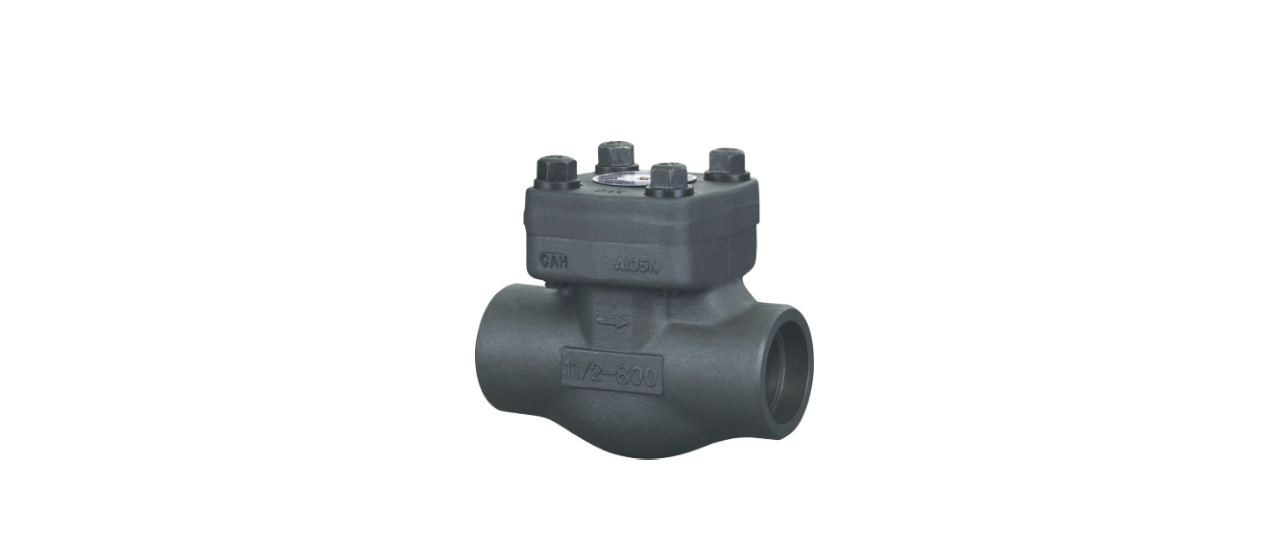

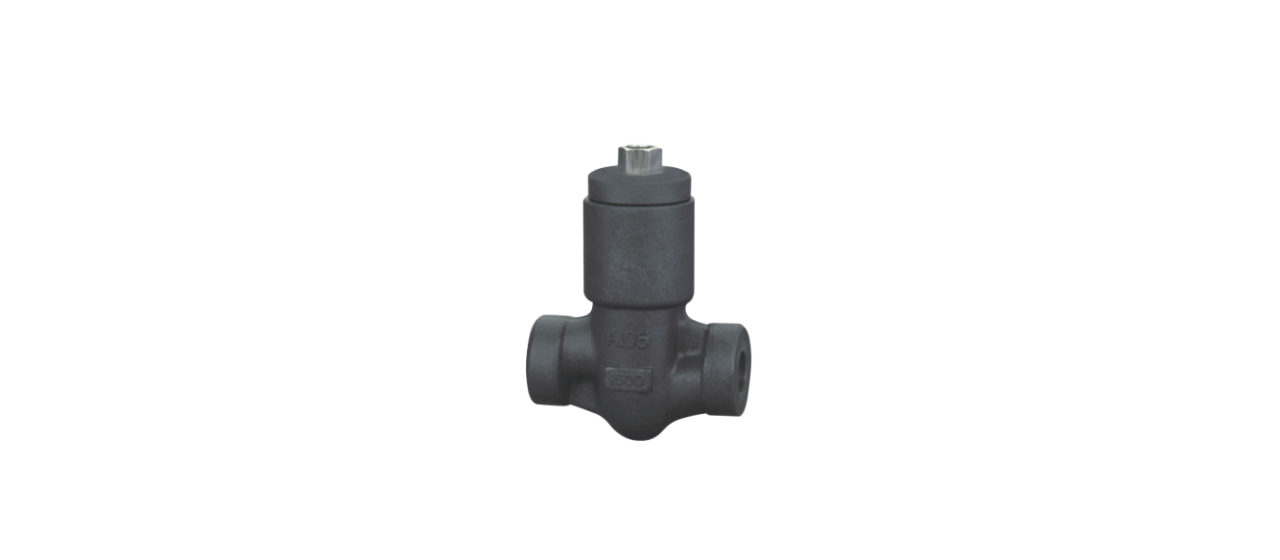

·Lift or Swing Type (Check Valve)
·Bolt Bonnet/Cover, Pressure Seal Bonnet/Cover, Weld Bonnet/Cover
·Renewable or Non-renewable Seat
·NACE MR 0175/NACE MR 0103, HIC/SSCC
·Extend Stem/Bonnet (Except Check Valve)
·Pup Piece
·Fugitive Emission, Vacuum Isolation
·Free of Oil and Water
·With Locking Device, Position Indicator, Limit Switch (Except Check Valve)
·With Bypass, Drain or Vent
·With Counter Flange, Gasket, Fasterners
| Type : | Gate, Globe, Check Valves |
| Size : | 1/2”-2” (DN15-DN50) |
| Pressure Rating : | Class 150-600 (PN16-PN420) |
| Body Material : | Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel etc. |
| Trim Material : | API 600 |
| Operation : | Hand Wheel, Chain, Gear Box, Electric and Pneumatic Actuator etc. |
| End Connection : | Flange, SW, Threaded, BW etc. |
