Casted Gate, Globe and Check Valves
·Design as per API 600, API 603, BS 1873, BS 1868, API 594, API 6D, ASMEB16.34 etc.

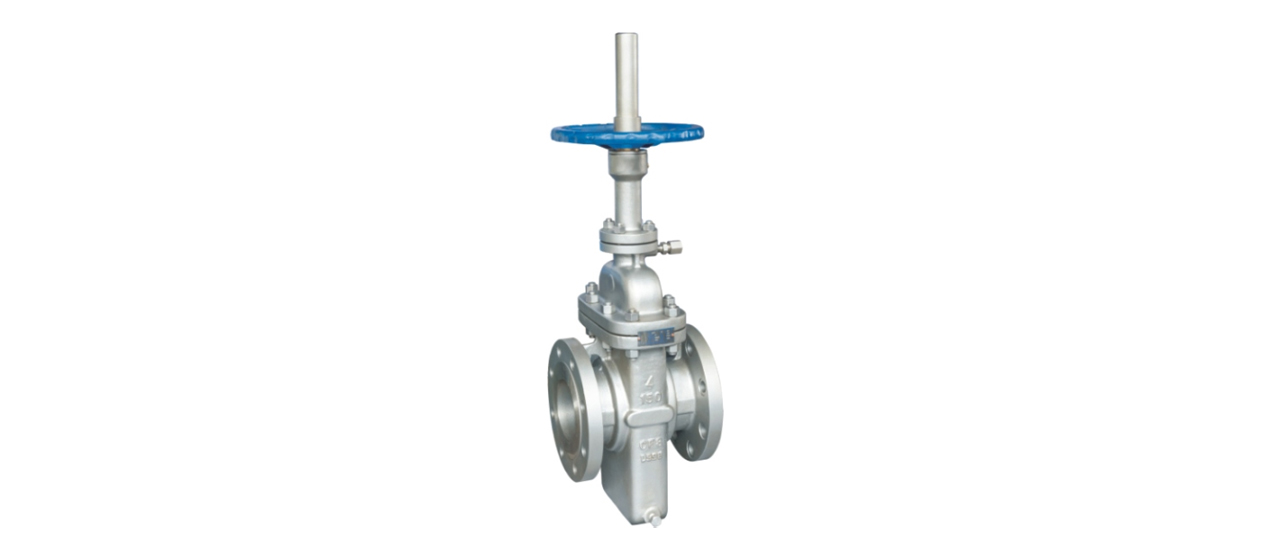

·Flexible/Solid Wedge, Through Conduit Slab Gate, Parallel Double Disc (Gate Valve)
·Straight, Y-Type or Angle type with Conical, Spherical, Needle or Parabolic Disc (Globe Valve)

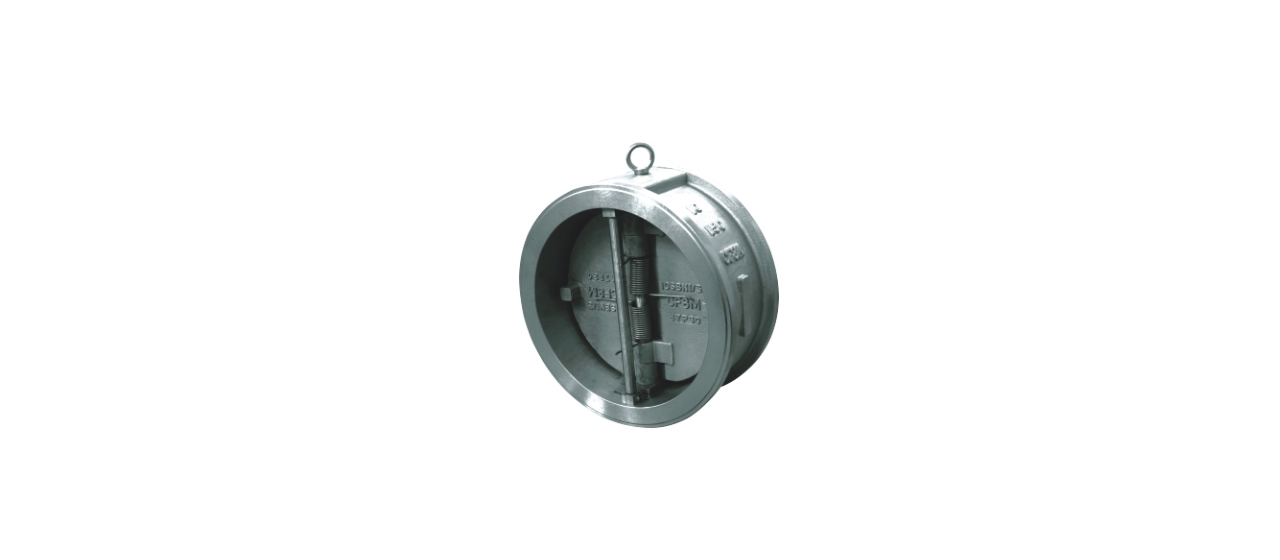

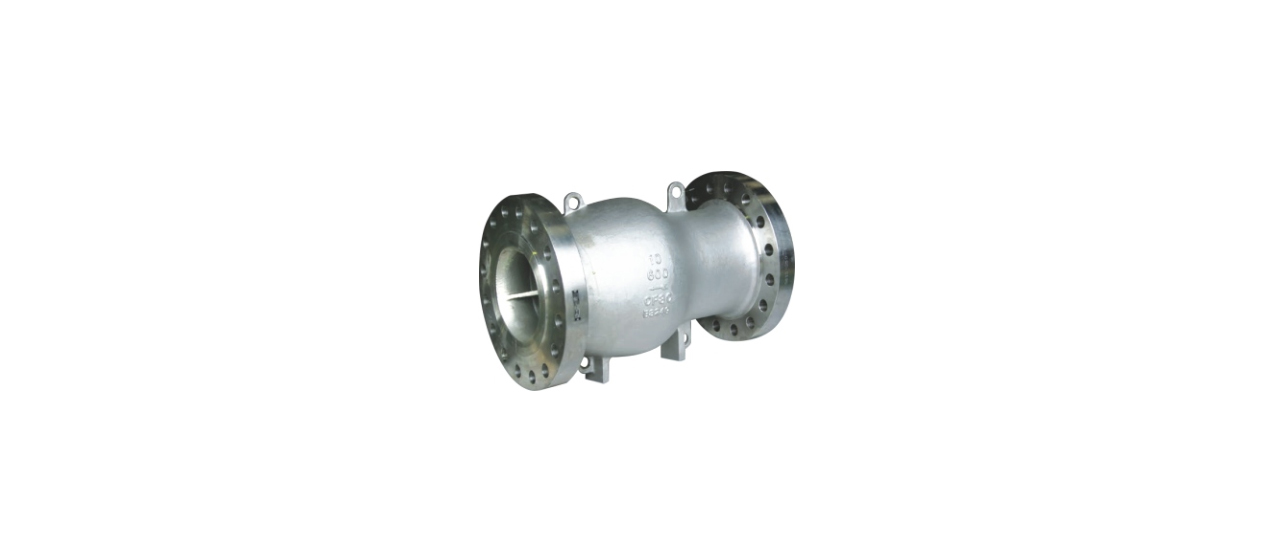

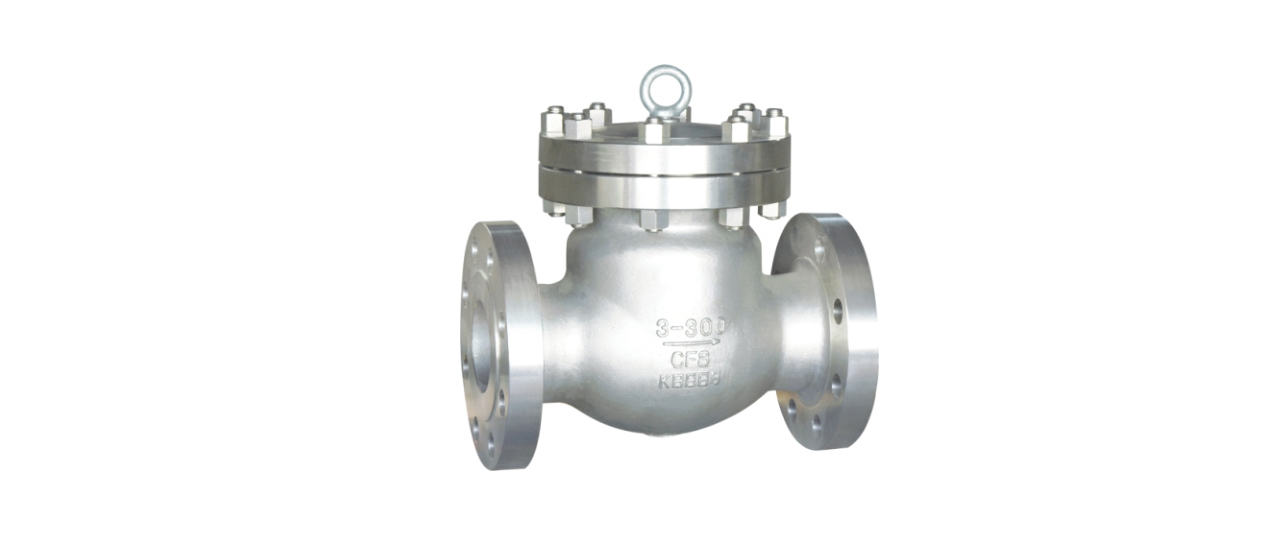

·Swing, Titling, Lift, Axial Flow or Dual Plate type (Check Valve)

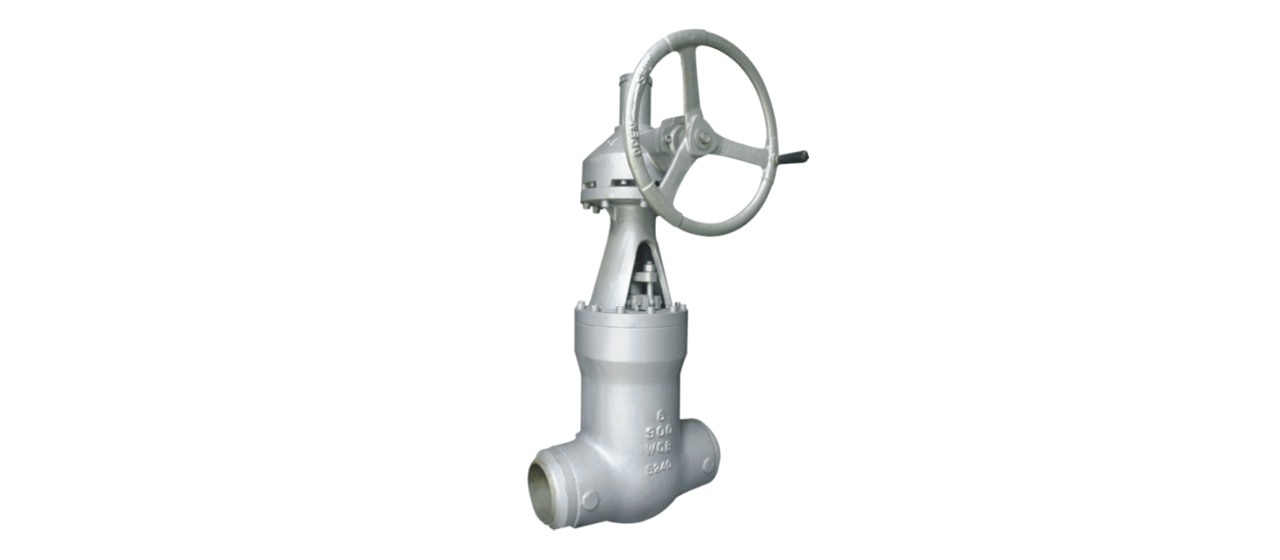

·Bolt Bonnet/Cover, Pressure Seal Bonnet/Cover, Weld Bonnet/Cover
·OS&Y (Except Check Valve)
·Renewable or Non-renewable Seat
·NACE MR 0175/NACE MR 0103, HIC/SSCC
·Extend Stem/Bonnet (Except Check Valve)
·Pup Piece
·Fugitive Emission, Vacuum Isolation
·Free of Oil and Water
·With Locking Device, Position Indicator, Limit Switch (Except Check Valve)
·With Bypass, Drain or Vent
·With Counter Flange, Gasket, Fasterners
·Insulation Jacket
Type : | Gate Valve | Globe Valve | Check Valve |
Size : | 2”-60” (DN50-DN1500) | 2”-24” (DN50-DN600) | 2”-60” (DN50-DN1500) |
Pressure Rating : | Class 150-2500 (PN16-PN420) | ||
Body Material : | Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel etc. | ||
Trim Material : | API 600 | ||
Operation : | Hand Wheel, Chain, Gear Box, Electric and Pneumatic Actuator etc. | ||
End Connection : | Flange, BW etc. |
